Have you ever thought about how to ensure that the "heart" of large and critical power equipment, such as generators, transformers, cables, etc., is strong enough and the lines are reliable before they are put into use? Today, let's talk about a crucial "behind the scenes hero" in the power industry - the complete set of variable frequency series resonance equipment. It is like a "health checkup specialist" for electrical equipment, providing us with professional testing to ensure our electrical safety.
What is a complete set of variable frequency series resonance equipment?

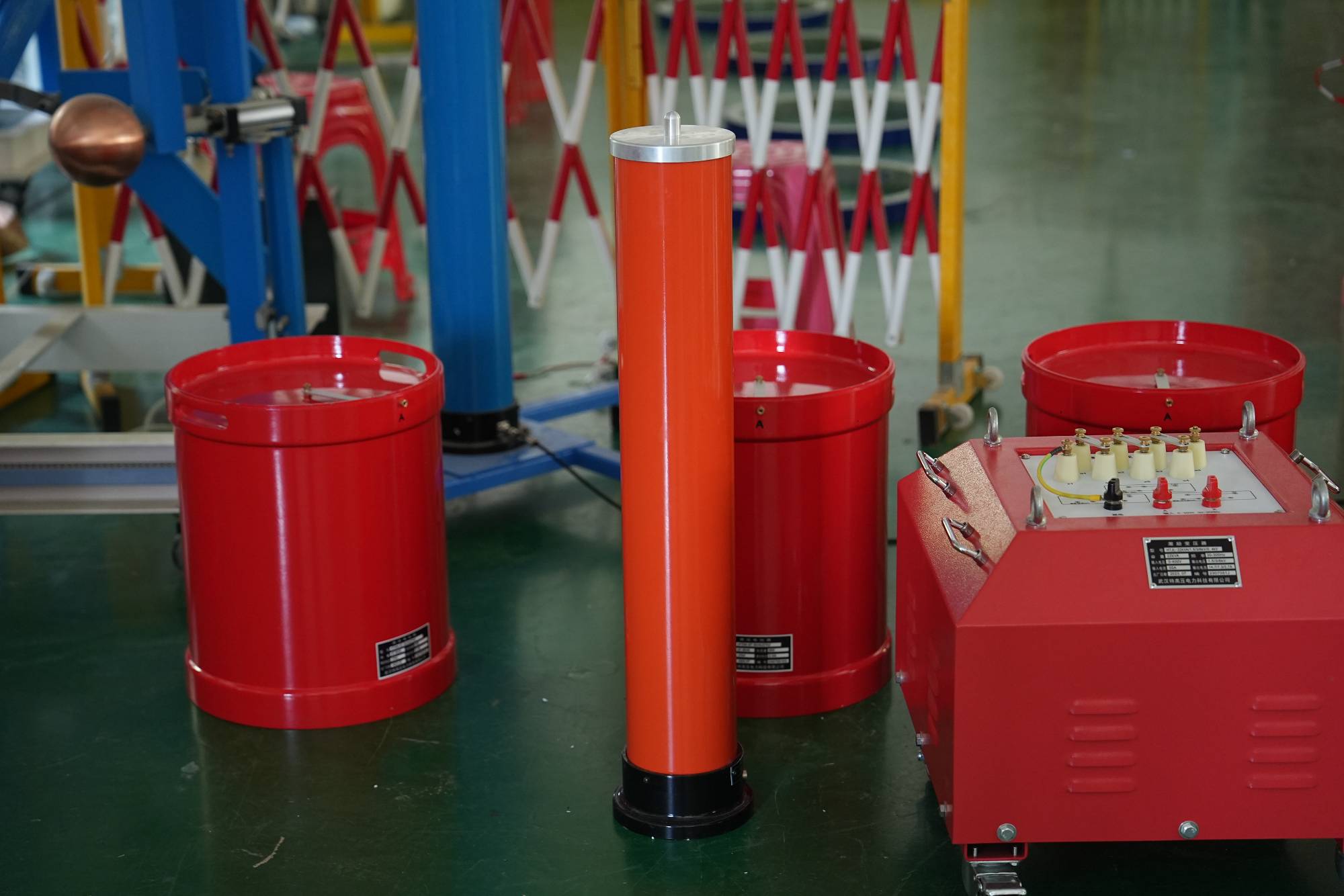

Simply put, the frequency conversion series resonance complete set device is a specialized equipment used for AC withstand voltage testing of high-voltage electrical equipment. It changes the frequency of the output power supply to generate a large resonant current in the inductance and capacitance components of the series resonant circuit, thereby obtaining a high test voltage on the test sample. Think about it, just like conducting load-bearing tests on bridges, we need to use "pressure" far beyond normal working requirements to test whether it is truly unbreakable.
Key factors affecting testing effectiveness
Conducting efficient and accurate withstand voltage testing is not an easy task. The following factors are crucial for the testing effectiveness of the frequency conversion series resonance complete set device:
The capacitance of the test sample: Different types and capacities of power equipment have significant differences in their own capacitance, which directly affects the selection of resonant frequency.
Frequency stability of power supply: A stable frequency is the key to ensuring accurate resonance, and slim fluctuation can lead to inaccurate readings
Stability of test voltage: The test voltage must be stable within a set range in order to truly reflect the equipment's withstand voltage capability.
Environmental factors such as temperature and humidity may also affect the test results.
Intelligent testing tools and solutions
In the face of these challenges, choosing the appropriate testing tools becomes particularly important. Wuhan UHV Power Technology Co., Ltd. has been deeply involved in this field for many years. Its frequency conversion series resonance complete set device integrates advanced frequency conversion control technology and precision measurement system.
Intelligent frequency modulation technology: It can automatically search for resonance frequency based on the capacitance of the test sample, eliminating the tedious manual adjustment.
Accurate voltage and current measurement: Real time monitoring of voltage and current during the testing process to ensure the accuracy of test data.
Multiple safety protections: equipped with overvoltage, overcurrent, flashover and other protection functions, effectively ensuring equipment and personal safety.
Humanized operating interface: A simple and intuitive operating interface that allows users to quickly get started.
How can we do better?
To maximize the effectiveness of the variable frequency series resonance equipment, the following suggestions can help you:
Familiarity with the characteristics of the test sample: Before testing, fully understanding the rated parameters, capacitance, and other information of the test equipment can help to set the test parameters more accurately.
Standardized operating procedures: Strictly follow the equipment manual and relevant testing procedures to ensure that every step is in place.
Regular maintenance: Like any precision instrument, the frequency conversion series resonance complete set device also needs regular inspection and maintenance to ensure its good operating condition.
Data analysis and interpretation: Proficiently mastering the analysis methods of experimental data can help you gain a deeper understanding of the true condition of the tested equipment.
Wuhan UHV Power Technology Co., Ltd. is committed to providing high-quality power testing solutions to help users complete various testing tasks more efficiently and safely.
