The reliability of equipment insulation performance is crucial in the operation of power systems. But you know what? Some "electric tigers" emit annoying "roars" during operation - that is, partial discharge. It not only accelerates the insulation aging of equipment, but in severe cases may even lead to equipment damage, causing huge economic losses. Today, let's talk about how to use a black technology called "variable frequency series resonant device" to tame these "electric tigers" and make them obedient.

What is a variable frequency series resonant device? Why is it so important?

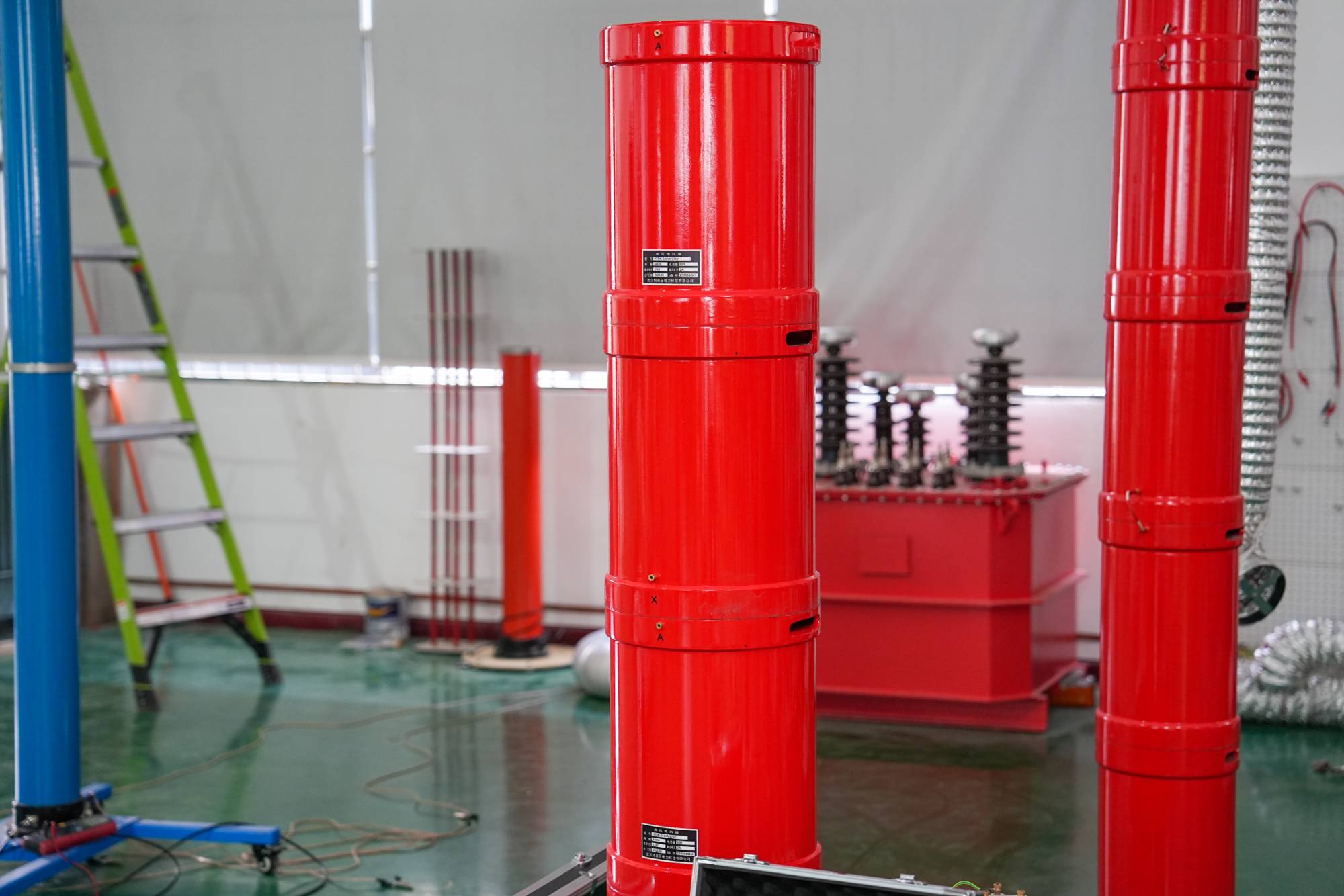

Simply put, a variable frequency series resonant device is a specialized equipment used for insulation withstand voltage testing of power equipment. Its core principle is to use a series resonant circuit to generate high test voltages at lower voltages and currents, thereby effectively and safely testing the insulation of large high-voltage electrical equipment such as generators, transformers, and cables.

Why pay special attention to it?

Accurate detection: Traditional withstand voltage testing methods may have limitations, while variable frequency series resonant devices can more accurately detect early defects in insulation, such as partial discharge.

Safe and reliable: It can generate high voltage under low-power conditions, greatly reducing the risk during the testing process and protecting the tested equipment and operators.

Strong adaptability: able to adapt to tested equipment with different capacities and loads, it can be said to be the "master key" for power system testing.

The 'behind the scenes' driving force that affects the effectiveness of variable frequency series resonance testing

To maximize the effectiveness of the variable frequency series resonant device, we need to understand the factors that affect it:

The capacitance of the tested device: This is the key to determining the parameters of the resonant circuit.

Stability of power frequency: Frequency fluctuations directly affect the accuracy of the resonance point.

Experimental environment: Environmental factors such as temperature and humidity can also affect insulation performance and test results.

The selection and configuration of the equipment itself: Only suitable devices can match the characteristics of the tested equipment.

Wuhan UHV Power Technology Co., Ltd. has rich experience and leading technology in this area, and their products can effectively address these challenges.

Mastering the 'Silent Master': What are our 'handy weapons'?

To conduct efficient frequency conversion series resonance tests, you need these "handy weapons":

Variable frequency resonance control box: the "brain" of the device, responsible for controlling the adjustment of frequency and voltage.

Boosting reactor: responsible for boosting and is an important component of the resonant circuit.

Capacitive voltage divider: used to measure the voltage on the high voltage side to ensure the accuracy of test data.

Excitation transformer (if required): provides power to the control box.

These devices work together to provide us with accurate experimental results. The complete solution provided by Wuhan Ultra High Voltage Power Technology Co., Ltd. can help you easily cope with various testing scenarios.

The "Past and Present" and "Application Scenarios" of Variable Frequency Series Resonant Devices

The development of variable frequency series resonance technology cannot be separated from the continuous improvement of reliability requirements for power systems. From the early simple induction voltage withstand to the current intelligent frequency conversion resonance, technological advancements have made our power system safer and more reliable.

With what "brothers and sisters"?

Partial discharge detector: The variable frequency series resonant device is often used in conjunction with a partial discharge detector, which can capture the weak discharge signal of the tested equipment under resonant voltage.

Insulation resistance tester: Before conducting resonance tests, an insulation resistance tester is usually used for preliminary insulation condition assessment.

How can we do better?

Accurate selection: Based on the maximum capacitance of the tested equipment and the required test voltage, select appropriate reactors and step-up transformers to ensure that the required resonant capacity can be achieved.

Optimize wiring: standardize wiring, reduce line losses, and ensure the quality factor (Q value) of the resonant circuit.

Proficient operation: Operators need to be familiar with equipment performance and operating procedures in order to maximize their effectiveness.

Data analysis: Combining historical data and industry standards, conduct in-depth analysis of experimental results to promptly identify potential issues.

Wuhan UHV Power Technology Co., Ltd., with its professional technical team and rich on-site experience, can provide you with professional selection advice and operation guidance to ensure the success of the experiment.
