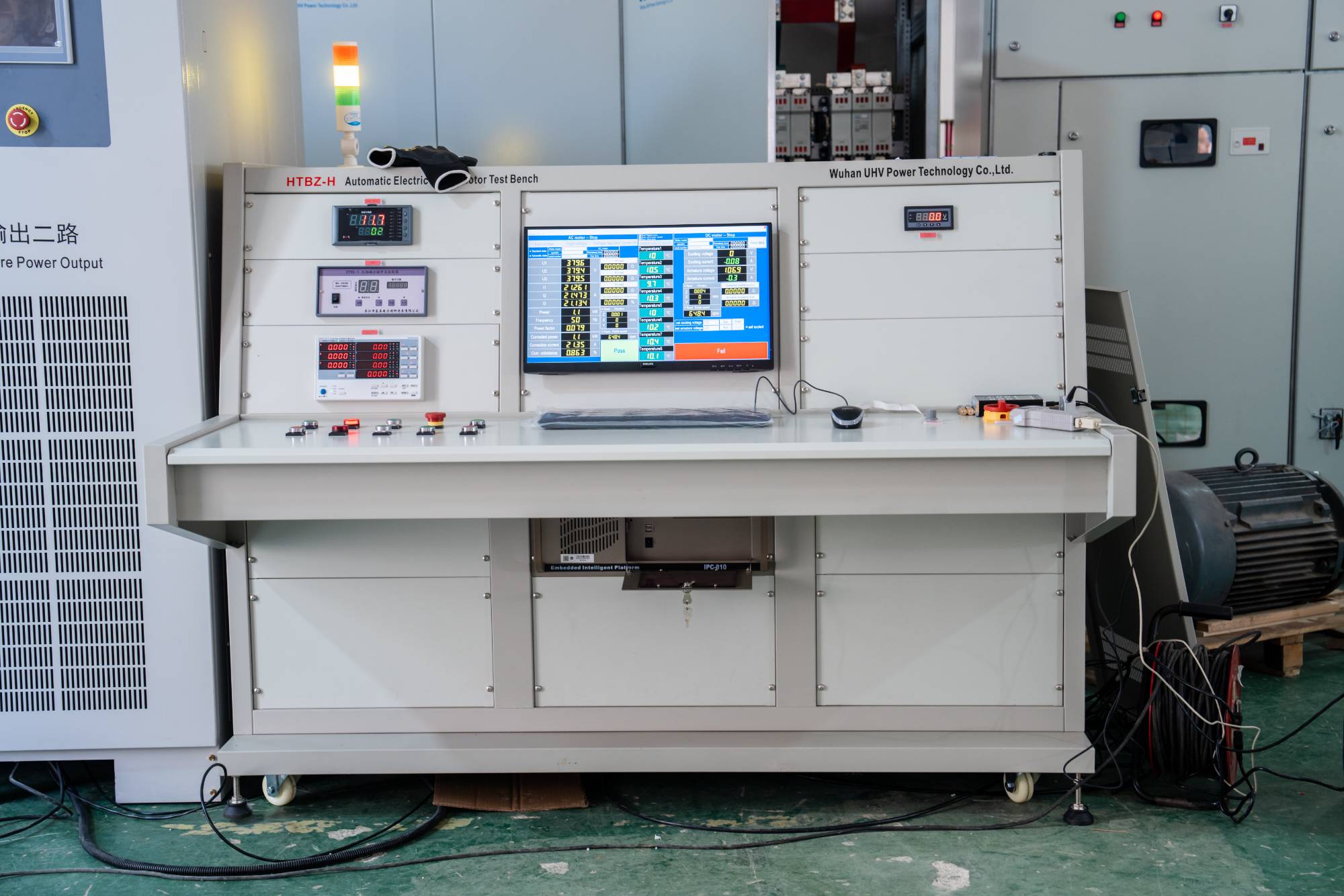

TheDC motor test bench is a device used to test and evaluate the performance of DC motors. It is mainly used to measure and inspect whether the motor has faults or damages during operation, as well as to determine its performance. The DC motor test bench usually consists of the following parts:
Force measurement system: This is the core part of the entire system, including sensors, weighing devices, and transmission mechanisms, used to measure the output torque and load conditions of the motor.
Control system: As the nerve center and control center of the system, including control cabinets and computers, responsible for the control and data acquisition of the entire experimental process.
Display recording system: used for recording, storing, and analyzing test data and results.
Function and purpose of DC motor test bench
TheDC motor test bench can test various parameters of the motor, including voltage, current, input power, output torque, speed, output power, efficiency, temperature, vibration, and noise. Through these tests, the comprehensive performance of the motor can be evaluated, providing accurate basis for the research and development, production, and repair of the motor. Common testing items include no-load test, loading test, temperature rise test, and efficiency test.
