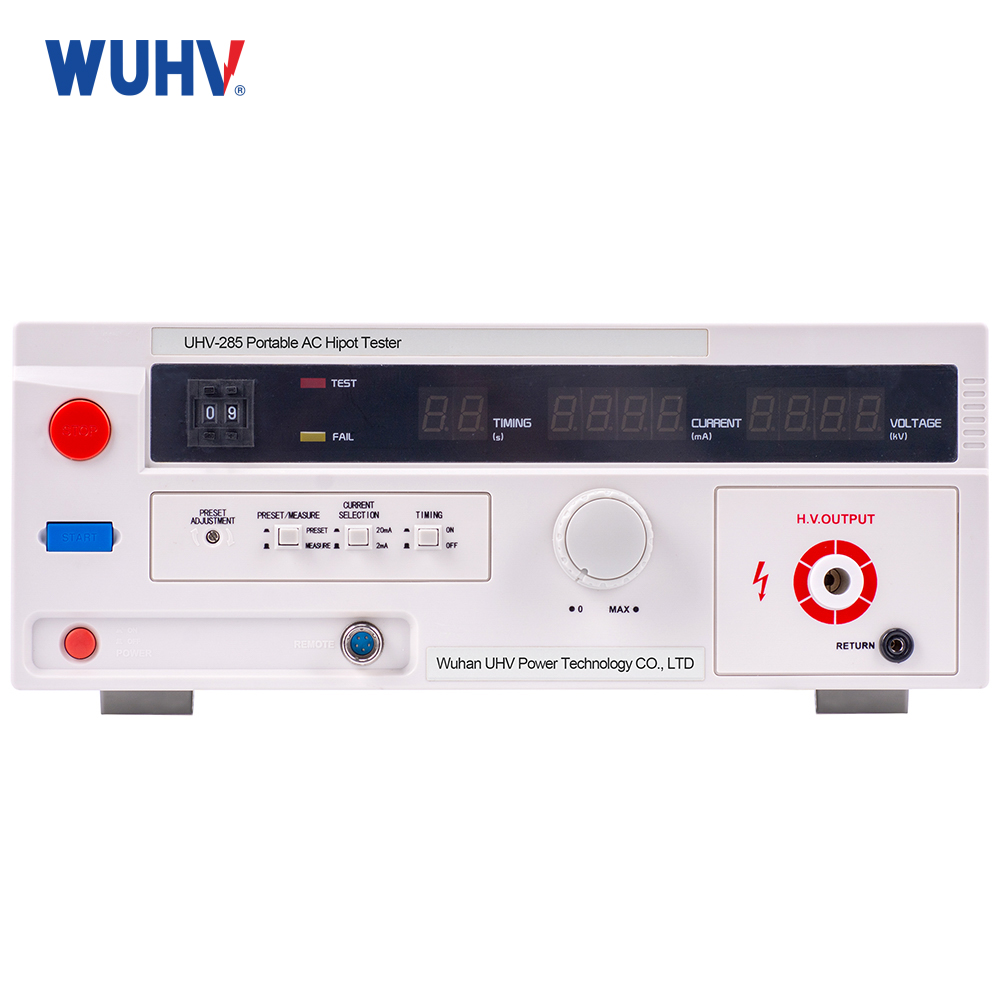

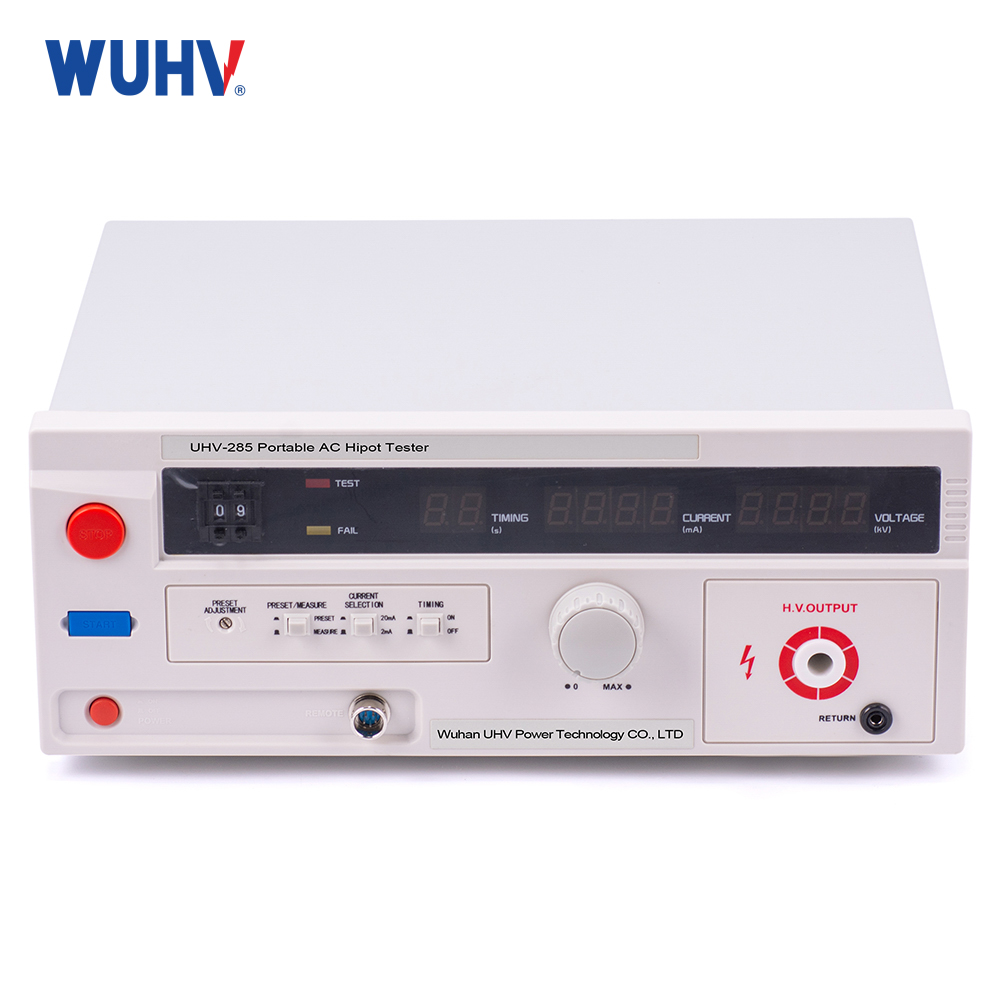

Portable AC Hipot Tester
Өнімге кіріспе
UHV-285 Portable Hipot Tester is an AC high-voltage safety testing instrument widely used for withstand voltage tests on electronic instruments, equipment, components, electrical appliances, Bakelite products, rubber materials, high-voltage cables, and motors. It is also suitable for safety testing of household appliances.
Өнім ерекшеліктері
1. Equipped with high-brightness digital tube display, offering wide viewing angles and clear, easy-to-read visibility.
2. Capable of real-time monitoring and display of both leakage current and test voltage during operation.
3. Features preset timing with countdown display, automatically shutting off output voltage upon timeout for safe test interruption.
4. Allows arbitrary preset alarm current threshold; triggers audible and visual alarms when leakage current exceeds the set value, prompting test result recording.
5. Delivers 50Hz sine wave output with stable and reliable waveform quality.
6. All critical components utilize imported elements, ensuring high measurement accuracy and extended service life.
7. Designed with a one-piece chassis for compact size, lightweight construction, and excellent portability.
Техникалық параметрлер
| Test voltage | AC: 0.5 kV~5kV ±5% | |
| Leakage current setting value | AC: 0.2~200(mA) set arbitrarily | |
| Leakage current setting accuracy | ±5% | |
| Output waveform | 50Hz sinusoidal waveform | |
| Output power | 1000ВА | |
| Time control | 1~99(s)±5% manual control∞ arbitrary preset | |
| Power supply voltage | AC: 220V±10% 50Hz±2Hz | |
| Environmental requirements | relative humidity≤ 75%RH | |
| ambient temperature: 0°C~40°C | ||
| Қуатты тұтыну | static power consumption<30VA | |
